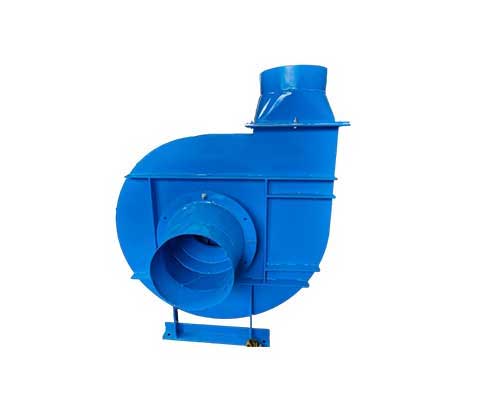

MesoTech Engineering Systems, the one of the top Centrifugal Blower System Manufacturers, Suppliers and Exporters in India, We are providing the best quality of centrifugal blower that are used for moving large volumes of air at high pressure and highly used in large industrial systems such as pneumatic conveying systems, air pollution control and material handling industries.
These systems give high ventilation and efficiently push air or gas using centrifugal force which is generated by a rotating air. Due to these modern methodologies, these are majorly used in multiple applications. Below, we have listed down its multiple types, benefits and applications as well.
One of the former Centrifugal Blower system in India, we are providing the best quality of systems and each system gives higher performance. Here we have listed down some types such as:
Click here: If you are looking for Working Principle of Centrifugal blower.
We have mentioned below a detailed technical sheet that give more information about our types of centrifugal blowers:
| Parameter | Single Inlet Single Outlet (SISO) | Single Inlet Double Outlet (SIDO) | Double Inlet Double Outlet (DIDO) | High-Pressure Centrifugal Blower |
|---|---|---|---|---|
| Airflow Capacity | 500 - 10,000 m³/hr | 1,000 - 15,000 m³/hr | 5,000 - 20,000 m³/hr | 1,500 - 30,000 m³/hr |
| Pressure Handling | 300 - 600 Pa | 400 - 800 Pa | 500 - 1,000 Pa | 1,500 - 5,000 Pa |
| Motor Efficiency | IE3/IE4, 80-95% | IE3/IE4, 85-97% | IE3/IE4, 90-95% | IE3/IE4, 90-98% |
| Motor Power | 0.5 - 5 kW | 1 - 7 kW | 2 - 10 kW | 5 - 20 kW |
| Material Used | Steel, Aluminum | Reinforced composites, Stainless Steel | Stainless Steel, Alloy Composites | Industrial-grade stainless steel |
| Housing Size | 0.5 - 2 meters | 1 - 3 meters | 1.5 - 4 meters | 1.2 - 4.5 meters |
| Noise Level | 60 - 75 dB | 65 - 80 dB | 70 - 85 dB | 70 - 90 dB |
| Compactness | 0.5 - 3 meters | 0.8 - 2 meters | 1.5 - 3 meters | 1.5 - 2 meters |
| Vibration Control | ±0.05 - 0.1 mm | ±0.04 - 0.08 mm | ±0.03 - 0.07 mm | ±0.02 - 0.05 mm |
| Energy Consumption | 0.5 - 2 kWh | 1 - 4 kWh | 2 - 6 kWh | 3 - 10 kWh |
| Temperature Resistance | -20°C to 80°C | -30°C to 85°C | -40°C to 90°C | -30°C to 100°C |
| Applications | HVAC, Commercial Cooling | Large HVAC, Exhaust systems | Industrial drying, HVAC distribution | Pneumatic conveying, Dust Collection |
| Typical Industries | Factories, Office HVAC | HVAC installations, Warehouses | Pharmaceutical, Chemical Plants | Mining, Steel, Industrial Production |
Being the former centrifugal blower system suppliers in India, these all types of systems are equipped with new technological updates and gives higher benefits such as:
As centrifugal blower system exporters in India, our centrifugal blowers are used extensively in a wide range of industries, such as:
As a former centrifugal blower manufacturer, supplier, exproter in India, we as Mesotech Engineering Systems are providing new technological systems that are usually used in multiple types of industries. These are made with accurate engineering methods and modern methodologies for improving performance all the time. Contact us today for more information!
A centrifugal blower is a type of fan that uses a rotating impeller to draw air or gas and discharge it at a 90-degree angle. It is commonly used in HVAC systems, industrial applications, and exhaust systems.
Centrifugal blowers are often made from materials like galvanized steel, stainless steel, aluminum, or cast iron. The choice depends on factors such as pressure, temperature, and the type of medium being moved.
To select the right blower size, consider factors like airflow capacity (CFM), pressure requirements, and system resistance. Consulting manufacturer specifications and system performance requirements is essential.
Centrifugal blowers are widely used in HVAC systems, industrial drying processes, and air pollution control systems. They are also commonly found in furnaces, cooling towers, and ventilation applications.
